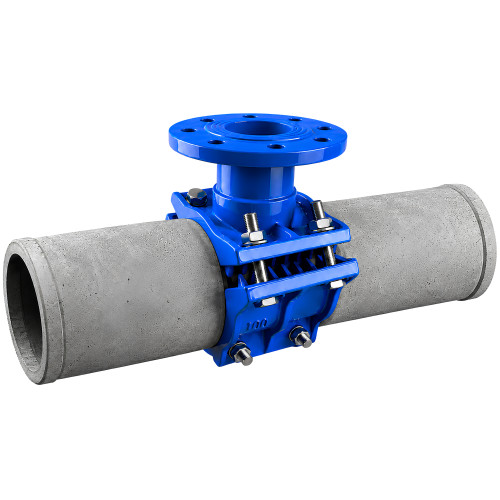

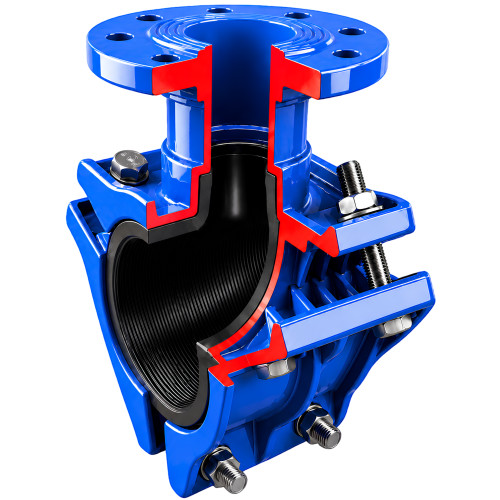

GRIPX Universal Connection Collar with Flange Outlet

• For cast iron, steel and asbestos-cement pipes.
• Dimensions and threads comply with standard NF EN 1092-2
• Outlet Flange ISO 7005-2
• Reliability
• Compact body
• Easy assembly thanks to flexible straps
• Adapted mounting angle
• Optimal transmission of tightening torques thanks to washers cylindrical as nut base
• Pressure-free drilling
• A2 stainless steel bolts.
• Safety against rotation thanks to a layer of rubber glued in the lower part of the collar
• No deformation of the pipes
• Convex washers and nuts included
• Maximum tightening torque of 100 Nm
• In stainless steel passivated
• Rubber vulcanization in elastomer
• Protection against corrosion: 250 µm epoxy powder coating

Approvals:

• Certificate of health conformity.

Features:

• Range: Universal: from Ø88 to Ø1050 other diameters on request
• Flange output from DN50 to DN200

Applications

• Water distribution networks.
