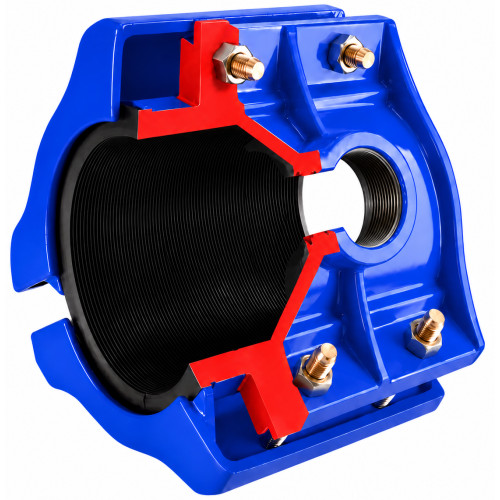

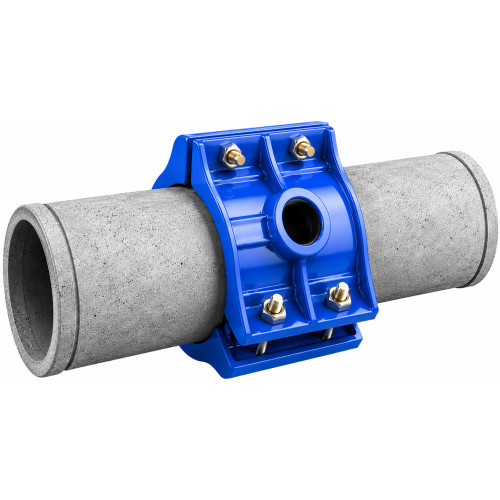

GRIPX Universal support collar with threaded outlet

• Wide range of use: 25 mm on average.
• For cast iron, steel and asbestos-cement pipes.
• Reduced number of models for a nominal diameter.
• ISO 228 tapped outlet
• Reliability: Sealing guaranteed by compression of a joint on the pipe when tightening, elastomer rubber vulcanization.
• Corrosion resistance: 250 µm epoxy powder coating and Géomet® 500 Gr.B or A2 stainless steel for the bolts.
• Simple and quick installation.
• Dimensions and threads comply with standard NF EN 1092-2
• Reliability
• Compact body
• Adapted mounting angle
• Optimal transmission of tightening torques thanks to cylindrical washers as nut base
• Pressure drilling.
• No deformation of the pipes
• Torque maximum tightening of 100 Nm

Approvals:

• Certificate of health conformity.

Characteristics :

• Range: Universal: from Ø68 to Ø870 other diameters on request
• Tapped output from 1/2’’ to 4’’

Applications

• Distribution networks of water.
