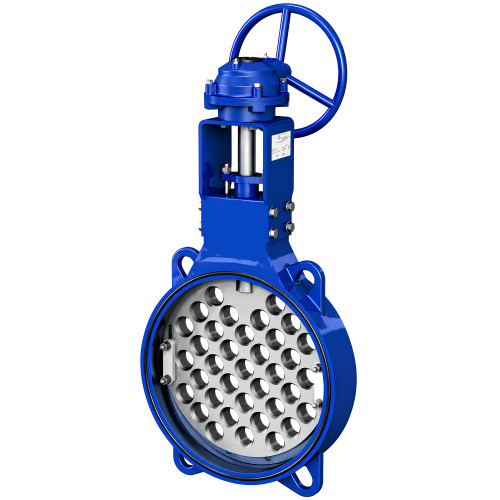

Jet Multiple HydroJet® adjustment and regulation valve

• Distance between faces up to DN600 compliant with standard UNE-EN 558 Base Series 20. For larger sizes, according to RYL standards.
• Multiple jet round valve, with a unidirectional design.
• Designed for precise flow regulation throughout its stroke.
• These valves are installed on the pipeline between flanges. The valve is manufactured with a wafer type design.
• No gaskets are required between the flanges, as they are integrated into the valve body.
• Various sealing materials and trim available.
• Distance between faces complies with RYL standards. Other distances on request.
• The main purpose of the multiple jet valve is to precisely regulate the flow, it is not designed to be 100% leak-proof. It is therefore recommended to install it between two isolation valves if necessary. The standard sealing percentage for these RYL valves is 97%.
• All RYL valves are tested. Material and testing certificates can be provided upon request.
• The tightness of the seat area is measured with gauges

Mounting types:

• Enter on flanges.
• Facing mounting, on horizontal pipe or at end pipe, maneuver on top.
• Assembly in other positions, contact us.

Approval:

• ACS (Certificate of Sanitary Conformity).

< /p>

Features:

• Range: DN 150 to 2000.* larger dimensions on request.
• ISO flanges PN 10, PN16, PN25, PN40, PN64, PN100.
• Each valve is designed in depending on working conditions.
• BS “D” and “E”.
• JIS10K. ASME B16.5 (class 150). *Other pressures, on request.
• Service temperature: -20°C to +70°C< /li>

Applications:

• Networks of water.
• Hydroelectric power stations.
• Urban supply.
• Irrigation systems.
