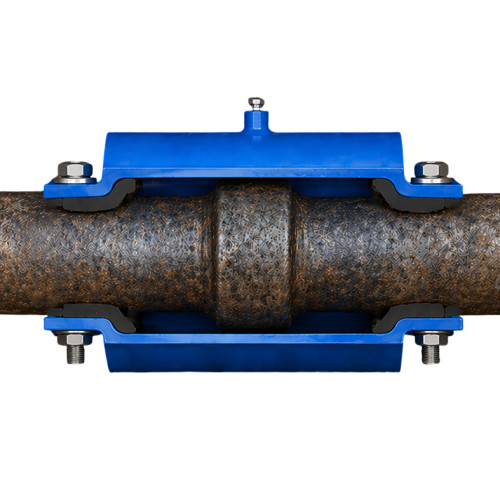

GT Multi-Material repair bicone

• Reliability: Sealing guaranteed by compression of a joint on the pipe when tightening.
• Wide range of use: 15 and 20 mm on average.
• Corrosion resistance: 250 µm epoxy powder coating and Géomet® 500 Gr.B for bolts.
• Simple and quick implementation.
• Intervention without water cutoff.
• Reduce intervention time.
• No inconvenience for users.
• Avoid axial movements.
• Quick and practical assembly.

Compliance with standards

• NF A 48-830: GS cast iron fittings for PVC drinking water pipes.
• NF EN 545: GS cast iron pipes, fittings and accessories for water pipes.
• NF EN 1092-2: Flanges and their assemblies. Part 2: Cast iron flanges.
• ISO 2531: Ductile iron pipes, fittings and accessories.
• ISO 7005-2: Metal flanges, cast iron flanges.
• ISO 7483: Dimensions of gaskets for use with ISO 7005 flanges.

Characteristics

• Range: DN 80 to 350. Higher DNs, contact us.
• PFA 25.
• Use temperature: +0°C to +70°C.

Applications

• Water transport and distribution.
• Pumping, treatment, storage.
• Fire protection networks and irrigation networks.
• Sewage and rainwater evacuation networks *With NBR seal (type WC NF EN 681-1).

Tests

• Leak-tightness test according to standard ISO 2531 and NF EN 14525.
