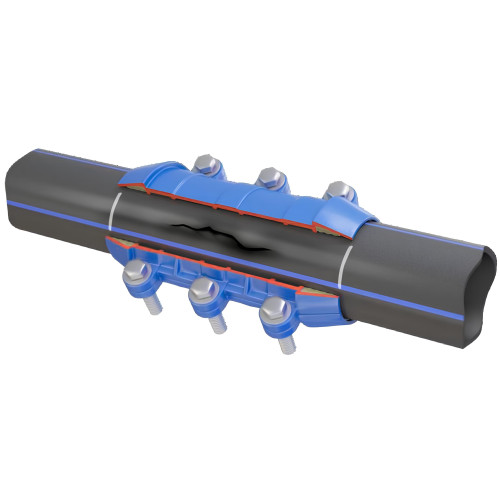

Two-part self-supported PVC - HDPE repair sleeve

• Reliability: Sealing guaranteed by compression of a joint on the pipe when tightened.
• Corrosion resistance: 250 µm epoxy powder coating and Géomet® 500 Gr.B for bolts.
• Simple and quick implementation
• Intervention without water cutoff.
• Reduce intervention time.
• No inconvenience for users.
• Avoid axial movements.
• Quick and practical assembly.

Compliance with standards

• NF A 48-830: GS cast iron fittings for PVC drinking water pipes.
• NF EN 545: GS cast iron pipes, fittings and accessories for water pipes.
• NF EN 1092-2: Flanges and their assemblies. Part 2: Cast iron flanges.
• ISO 2531: Ductile iron pipes, fittings and accessories.
• ISO 7005-2: Metal flanges, cast iron flanges.
• ISO 7483: Dimensions of gaskets for use with ISO 7005 flanges.

Approval

• Certificate of health compliance.

Note

• This connection mechanically prevents the tubes from dislodging.

Characteristics

• Range: DN 63 to 200. Higher DNs, contact us.
• PFA 16.
• Use temperature: +0°C to +70°C.

Applications

• Water transport and distribution.
• Pumping, treatment, storage.
• Fire protection networks and irrigation networks.
• Sewage and rainwater evacuation networks *With NBR seal (type WC NF EN 681-1).

Tests

• Watertightness test according to standard ISO 2531 and NF EN 14525.
