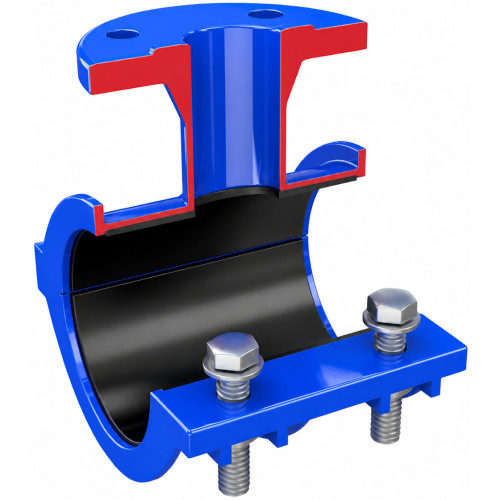

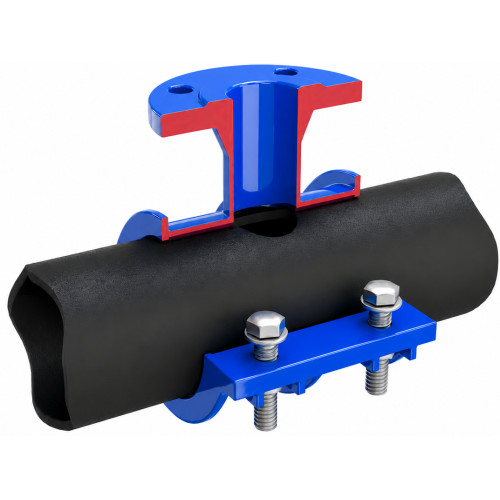

Connection collar for cast iron tube with flange outlet

• For cast iron pipes.
• Dimensions comply with standard NF EN 1092-2
• ISO Flange Outlet 7005-2
• Reliability: The sealing of the drilling is done by a preformed seal embedded in the interior part of the collar.
• Dedicated, by design, to the external diameters of the pipes Cast iron.
• A2 stainless steel bolts.
• Reliability:
• Body compact 31, 32);">No deformation of the pipes
• Corrosion protection: Epoxy powder coating 250 µm

Approvals:

• Health compliance certificate.

Features:

• Range: For tube Cast iron: du Ø77 to Ø378 other diameters on request.
• Flange outlet from DN50 to DN150

Applications

• Water distribution networks.
